Creating Chordal Fillets

The Chordal Fillet option in Edge Fillet command is used to control the width of the fillet (distance between the two rolling edges) which is also called as chordal length.



This command lets you define two variation in the chordal fillet:

• Cubic
• Linear

This task shows you how to create chordal fillets.

Open the Chordal_Fillet.CATPart document.
To perform this task in a different workbench like FMP, create a cube.

1. Click Edge Fillet  in the Dress-Up Features toolbar (Fillets sub-toolbar).
   (In the GSD Workbench, Click Edge Fillet from the Fillets sub-toolbar of the Operations toolbar.)

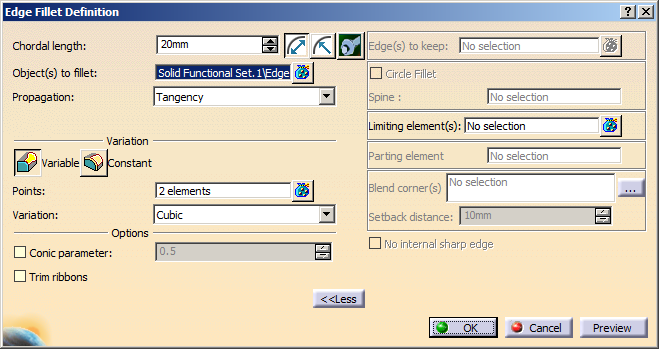

   The Edge Fillet Definition dialog box is displayed.


• The Support and Extremities fields are not seen in the Part Design workbench.
• The Variable and Constant Options under the Variation area have different icons in GSD workbench ( for Variable and for Constant).

2. Select the edge to be filleted. You can define chordal fillets on closed edges.
   The application detects both the vertices and displays two identical chordal lengths.


3. Click Chordal Length .
   Enter the required chordal length in the Chordal length box.
   For example, enter 50mm.


4. Click the icon of the Points field in the Edge Fillet Definition dialog box. Select Variable_Plane in the specification tree or geometry.

You can define a constant radius fillet as well as a variable radius fillet. To define a fillet with variable radius, you need to specify the intermediate points.

5. Double-click Variable_Plane chordal length in geometry. For example, enter 20mm in the Parameter Definition dialog box.


6. Click OK in the Edge Fillet Definition dialog box.
   The chordal fillet is created as shown below:


You can select the Conic parameter check box. This option allows you to vary the section of the fillet.
For a parameter between or equal to:

• 0.5, the resulting curve is a parabola.

• 0 < parameter < 0.5, the resulting curve is an arc of an ellipse.

• 0.5 < parameter < 1, the resulting curve is a hyperbola.

• Conical fillets do not handle twist configurations. If a twist is detected, the fillet operation fails.

• If the fillet surface curvature is lower than the support curvature, fillet surface relimitation may fail. In such cases, the conic parameter has to be decreased.

Limiting Elements

7. To edit this fillet, double-click EdgeFillet.1 in the specification tree or geometry. Click the More>> button to access the Limiting element(s) option.


8. Click the icon of Limiting element(s) field. Select Limit_Plane in the specification tree or geometry.

9. Click OK. The variable radius fillet is trimmed to Limit_Plane. The final part looks like this:

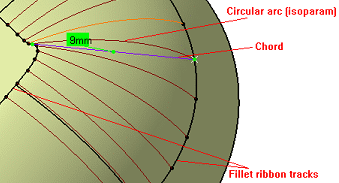

• The chord length is measured using the isoparams (circular arcs).


• The fillet surface respects the specified chord length. The chord length is measured using the circular arcs.


• Some faces are created to correct the twists. In such a case, the corresponding warning message is displayed. Such untwisted surfaces in general do not satisfy the chord length constraint.

• The constant chordal fillet should end in a tip, if the support surfaces are becoming tangent.

• The constant chordal fillet cannot compute a fillet, if the support surfaces become tangent.

• You should use variable chordal fillet with very small /zero radius at the location where the support surfaces become tangent. Constant chord fillet cannot handle such cases.

Chordal Fillet Dialog Box

Edit Fillet Values

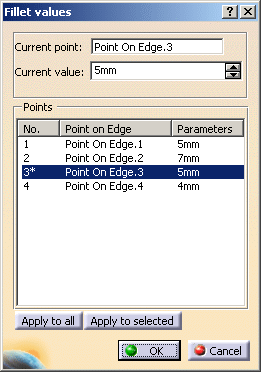

You can click on the right of the Chordal length box to display the Fillet values dialog box.

The Points area lists all the points of the part used to form the chordal fillets and the chordal length applied at these points. If you select any of these values, the corresponding constraint is highlighted in the geometric area (and vice-versa).

You can click Apply to all to set all the parameters to the value (or the parameter definition) chosen in the Current value box.

You can click Apply to selected to set the selected parameters to the value (or the parameter definition) chosen in the Current value box.

To sort the list by name and value, click on Point on Edge and Parameters tab respectively.

Selection Mode

The Selection mode available are:

• Minimal: The application does not take any tangencies into account. If filleted edges overlap, the application trims the fillets and creates a sharp edge.

  The edges tangent to selected edges can be taken into account to some extent. The application continues filleting beyond the selected edge whenever it cannot do otherwise.

• Tangency: Tangencies are taken into account so as to fillet entire edges. If you set the Tangency mode, the Trim ribbons option becomes available: you can then trim the fillets to be created.

  The tangent continuous edges of the selected edge are managed to ensure a better fillet stability and robustness (More fillets are automatically rerouted in case of design changes).

Points

• Contextual commands for creating the points you need are available from the Points field. Right-click in the Points field to see the contextual menu:


  • Create Point: For more information, see Creating Points.

  • Create Midpoint: Creates the midpoint of the line you select.

  • Create Endpoint: Creates the endpoint of the line you select.

  • Create Plane: For more information, see Creating Planes.

  • Create Intersection: For more information, see Creating Intersections.

  • Create Projection: For more information, see Creating Projections.
    If you create any of these elements, the application displays the corresponding element detail in the Points field. Click the icon of the Points field to edit the corresponding element.

• To add additional points on the edge to be filleted, you can also select planes. The application computes the intersections between these planes and the edge to determine the useful points.

• Points can also be added by selecting the 3D points.

Limiting Elements

• It is possible to use one or more limiting elements.

• Contextual commands for creating the limiting elements you need are available in the Limiting element(s) field. Right-click in the Limiting element(s) field to see the contextual menu:

  • Create Point: For more information, see Creating Points.

  • Create Midpoint: Creates the midpoint of the line you select.

  • Create Endpoint: Creates the endpoint of the line you select.

  • Create Plane: For more information, see Creating Planes.

  • XY Plane: The XY plane of the current coordinate system origin (0,0,0) becomes the limiting element.

  • YZ Plane: The YZ plane of the current coordinate system origin (0,0,0) becomes the limiting element.

  • ZX Plane: The ZX plane of the current coordinate system origin (0,0,0) becomes the limiting element.

  • Create Intersection: For more information, see Creating Intersections.

  • Create Projection: For more information, see Creating Projections.

  • Create Join: Joins surfaces or curves. for more information, see Joining Surfaces or Curves.

  • Create Extrapol: Extrapolates surface boundaries or curves. For more information, see Extrapolating Surfaces and Extrapolating Curves.

  If you create any of these elements, the application displays the corresponding element detail in the Limiting element(s) field. Click the icon of the Points field to edit the corresponding element.

• You can create limiting elements by clicking the edge to be filleted. The application displays this element as a blue disk.

• You can select points as limiting elements. These points must be located on the edge to be filleted and they must have been created using the On curve option available in the Point Definition dialog box.
