Performing a Mirror Analysis

This task shows how selected geometry elements can be mirrored at a symmetry plane.
Note:
  • The Mirror Analysis does not create new elements, but only a mirrored image of the original geometry.
  • The mirrored elements can neither be selected nor modified.
  • Modifications on the original geometry will be adopted on the mirrored geometry.
  • Analyses are not carried out on the mirrored geometry.
  • The display of the original geometry and the mirrored geometry can be set individually using the command 'Hide/Show'.
Open the MirrorAnalysis.CATPart document.

  1. Click the Mirror Analysis icon .

    The 'Mirror Analysis' dialog box is displayed.

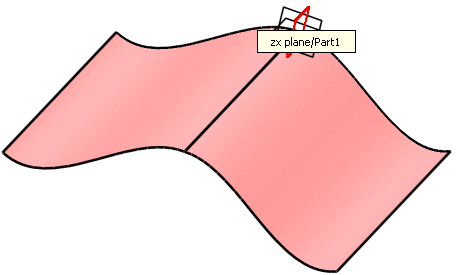

  1. Select the element to be mirrored. After the selection the geometry mirrored at the zx plane of model coordinate system (default setting) is displayed.


  1. Press F8 to change to the field 'Symmetry Plane' in the dialog box 'Mirror Analysis'.

  2. Select the yz plane either via the contextual command or by graphic selection. The element is now mirrored at the yz plane.
With the option 'Create Plane' in the contextual command you can also create a user-defined plane (see Creating Planes).

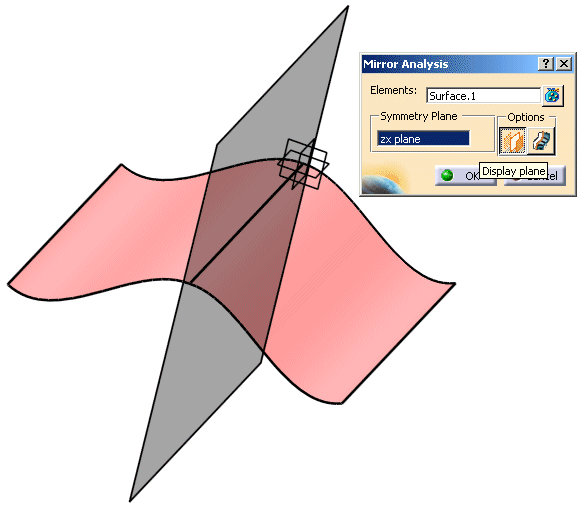

  1. With the option 'Display plane' the symmetry plane can be displayed as transparent surface.

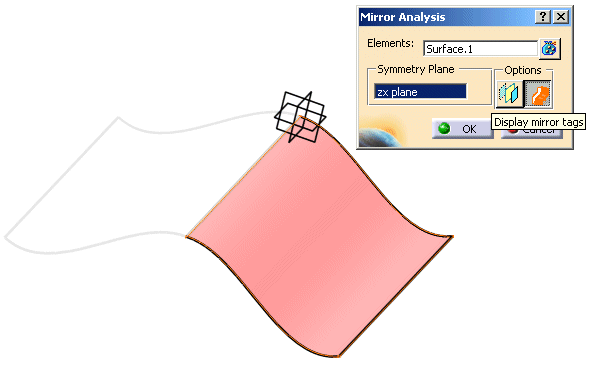

  1. With the option 'Display mirror tags' the mirrored element is highlighted.


    Note:
    The color of the mirror tags can be selected with the option Feedback color in the menu Tools > Options > ICEM Shape Design > General.
