Editing a Capture

This task shows you how to manage tolerancing capture options in existing capture.
Open the Annotations_Part_05.CATPart document.

  1. Double-click the Initial State capture.

    You are now in the Filter workshop.

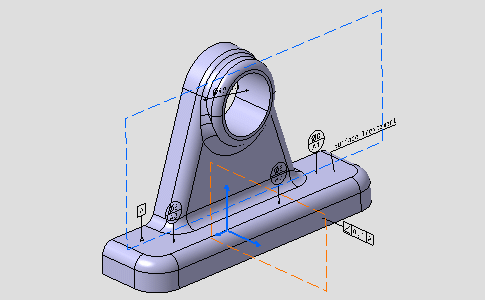

    • The geometry and specification tree are displayed according to the capture definition.

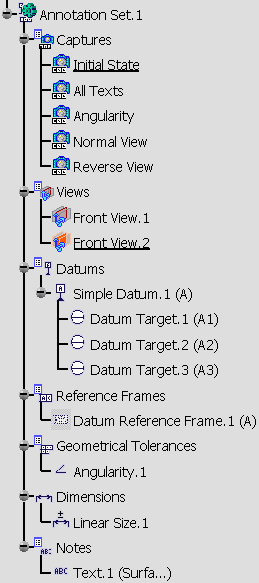

    • Initial State capture is underlined in the specification tree indicating the capture edit mode.
    • Initial State capture is automatically set as current  :
      From now, all the new annotations or annotation planes will be associated with this capture while it is current, even if you exit the edit mode.
    • You can also set, or unset, a capture as current by right-clicking a capture in the Functional Tolerancing & Annotation workbench and selecting Set Current or Unset Current commands from the contextual menu. You can associate annotations and/or an view/annotation plane to one or several captures without editing them.

  2. Select in the Camera combo box the Camera03.

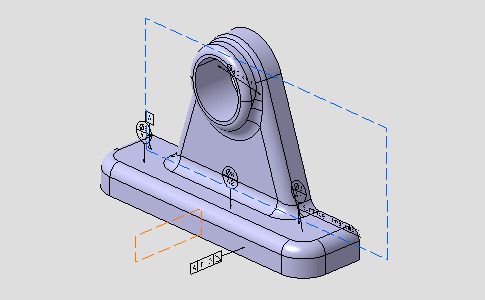

    A camera is associated with the capture.
    Note that you can re-use cameras created in the document with another workbench.
    See Creating a Tolerancing Capture.
    Note that you can re-use cameras created in the document outside this workshop.

  1. Click the Clipping Plane icon

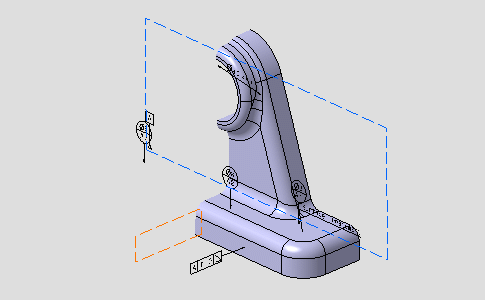

    A clipping plane is associated with the capture.
  2. Click Exit from capture .
    You are back in the Functional Tolerancing and Annotations workbench.

    To edit a capture, double-click the capture in the specification tree, or the geometry window when it is displayed.
