Linking Bundle Segments

This task shows how to create a connection between a bundle segment and a device or between two bundle segments.


This applies to multi-branchable and single bundle segments.
You can also link a single bundle segment to a branch.


Open the Link.CATProduct document.
  • Make sure the options are set according to your needs.
  • If the Geometrical link option is not activated, only the electrical link is created.

  1. Click Link in the Management toolbar.

    You are prompted to select the bundle segment you want to connect.
    • CATIA finds the closest bundle segment extremity according to the selection point.
    • If you click Link , and move the mouse over a bundle segment that is already linked:
      • All the bundle segment extremities connected to the selected bundle segment are highlighted.

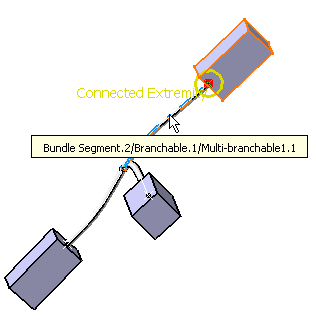

      • A yellow circle with a Connected Extremity label is displayed at the extremities.

  2. Select Bundle Segment1 close to the extremity to be connected.

    >> The extremity is highlighted:
    You are prompted to select another bundle segment extremity or a device.

  3. Select ConnectorLink.2.

    >> The connector is highlighted indicating that the selection is allowed: the connector includes a bundle connection point.
    CATIA finds the closest bundle connection point according to the selection point.
    A message is displayed asking you to confirm the selection.

  4. When you are satisfied, click OK validate your choice.

    The bundle segment is computed.
    The result looks like this:

    Note that you can add or reverse tangent.
To make the connection possible, a bundle connection point must be defined on the device.

Linking Bundle Segments Following a Part
This applies to single bundle segments only.

  1. Click Link .

    You are prompted to select the bundle segment you want to connect.
    You must choose first the bundle segment which is not following the part.
    Otherwise the construction is not possible.

  2. Select Bundle Segment1 close to the extremity to be connected.

    >> The extremity is highlighted:
    You are prompted to select another bundle segment extremity or a device.

  3. Select Bundle Segment2 close to the extremity to be connected.

    >>
    CATIA generates the point for the connection

    A message is displayed asking you to confirm the selection.

  4. Click OK validate your choice.

    The bundle segment is computed.

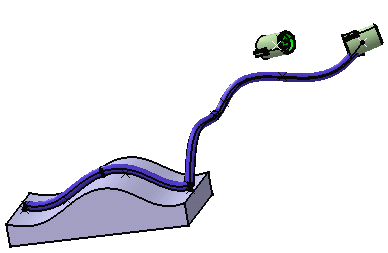

    The result looks like this:
    As you see, there is no tangency applied to the bundle segments.
    You can modify the route and define a tangent.

  5. Double-click to edit the bundle segment newly routed.

    The Bundle Segment Definition dialog box opens.

    1. Click Route Definition.
      The Bundle Segment Route Definition window opens.

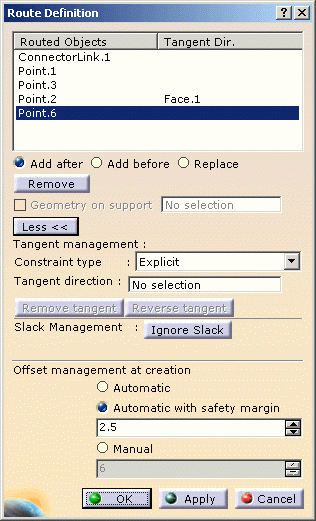

    2. Click More>>. It shows like this:

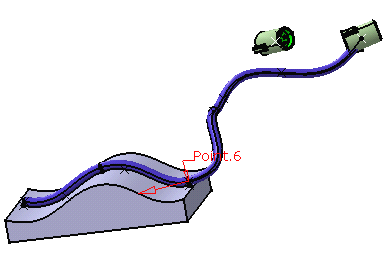

      Note that the bundle segment extremity (Point.6) is selected.

    3. Click the Tangent direction field and select the bundle segment flexible curve as shown below:

      The dialog box is updated:
      and also the geometry:

Displaying the electrical connection

  1. Click Related Objects in the Related Objects toolbar.

  2. Select the bundle segment: Bundle Segment1

    You see that the connector is linked to the bundle segment.

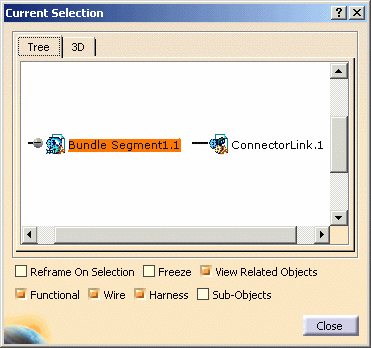

    • in the Tree view:
    • in the 3D view:
For more information, refer to Viewing Related Objects.
You can create a connection between a bundle segment and a device, or between two bundle segments even if the bundle segments are covered with a protection.
