Measuring Geometrical Bundle Inertia

This task explains how to generate the equivalent parameters which will make it possible to calculate the geometrical bundle components' inertia. Please refer to the Measure Inertia command to know more about those parameters.

It also relies on the mass of the wires routed in the bundle segments and on the mass of the protective coverings. These parameters are calculated using a specific command described below.

This command is available for both bundle segments and branches.
This command is available when creating a bundle segment on a part (keeping the associativity).

Activate the Parameters option in Tools > Options... > Infrastructure > Product Structure > Tree Customization to display the Parameters node in the specification tree.

The calculation is performed as follows:

For the bundle segments, the branches and the protective coverings, the mass calculation depend on equivalent parameters generated using the specific Measure Geometrical Bundle Inertia command.

The calculations of parameters like Center of gravity, Inertia Matrix, etc depends on the geometry as well as the mass of the geometrical bundle components. They are generated by Measure Inertia in the Measure toolbar.


• the mass of the bundle segment is the sum of the mass of the wires routed through this bundle segment as well as the sum of the mass of the internal splices connected to them.
• the mass of the wire extra length used in the backshell is added to the mass of the bundle segment to which it is connected.
  In case several bundle segments are connected to the same backshell, the mass of the wire extra length is added to the mass of the bundle segment for each of them.
• the mass of the branches is the sum of the mass of the bundle segments it aggregates and the mass of light protective coverings overlapping the bundle segments.
• the mass of the protective coverings (corrugated tube or tape) is calculated from the length and the linear mass, if this one is known.


1. Click Measure Geometrical Bundle Inertia .
   This command computes the parameters needed to get the Mass and Inertia of the selected component.

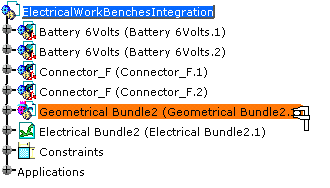

2. Click the geometrical bundle or electrical bundle for which you want to calculate the inertia parameters.

3. Click Measure Inertia .

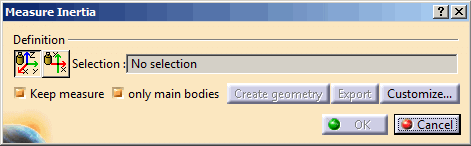

   The Measure Inertia dialog box opens:

   The cursor changes to to indicate that you will be able to measure objects. Refer to the Measure Inertia command.

4. Click Customize...

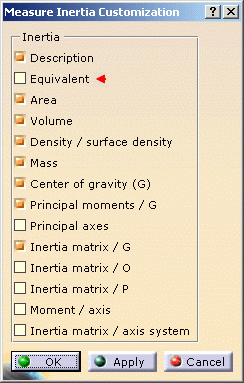

   The Measure Inertia Customization dialog box opens:

   Refer to Inertia Equivalents.

5. Click to select Equivalent and validate: the inertia equivalents previously computed will be taken into account.

6. Select the electrical component of interest.

   it can be: a geometrical bundle, an electrical bundle: selecting an electrical bundle calculates the equivalent parameters for all the geometrical bundles linked to it.

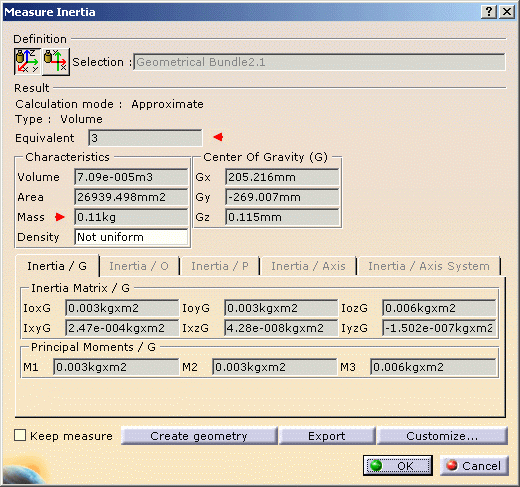

   The Measure Inertia dialog box expands to display the results for the selected item:

   Note that the Equivalent field shows that three elements are taken into account for the inertia calculation.

7. Click OK when done.
