Creating Limit Contours for Plies from Input File

The staggering data file contains:

• The staggering values,
• The staggering steps
• And the relimiting directions for each ETBS that will be used when relimiting the plies.

These values are usually modified by the user from the file generated when creating plies from zones,
selecting the option Create Full Plies and ETBS.

Please note that if  you add a new column (or a row) to the staggering data file (.xls or .xlsx file),
the corresponding first column (row) cell should not be left empty. i.e. you should add # to the first column cell
or the first row cell.
In the example below, we have added column L, M and N and written # in the first cell of those columns.

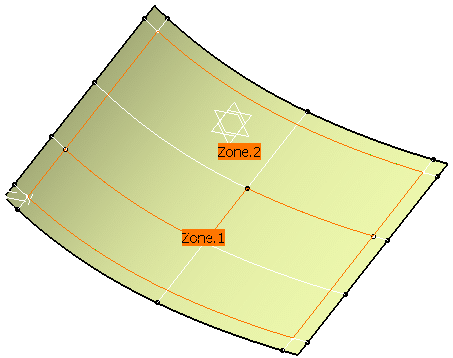

1. Click Plies From Zones   in the Plies toolbar.

2. In the Plies Creation dialog box, select Create Full Plies and ETBS.

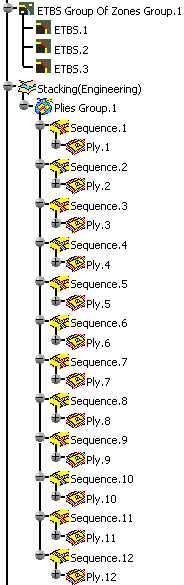

3. Click OK to create the ETBS.



4. Click Limit Contours From Input File  in the Plies toolbar

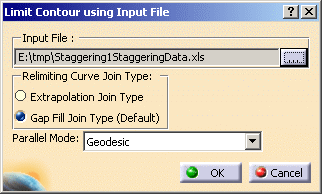

   The Limit Contour dialog box is displayed.


5. Select the type of Relimiting Curve Join.

   The relimiting curve is defined by curves joining each other in two ways: Extrapolation, then relimitation or Gap filling

6. The limit contour created is a parallel to the curve you have selected.
   You can select the type of parallel that will be created:

   Geodesic and Euclidian impose the type you have selected.
   Geodesic otherwise Euclidian will create a geodesic parallel if possible,
   otherwise it will create an Euclidian parallel.
   Euclidian otherwise Geodesic will create an Euclidian parallel if possible,
   otherwise it will create a geodesic parallel.
   Parallel planes otherwise geodesic will create an parallel planes if possible,
   otherwise it will create a geodesic parallel.

7. Click OK to relimit the plies.

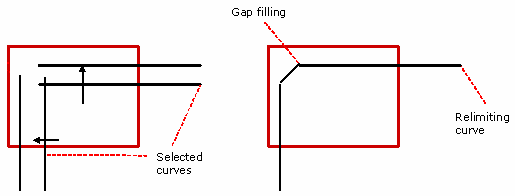

   Relimitation by gap filling

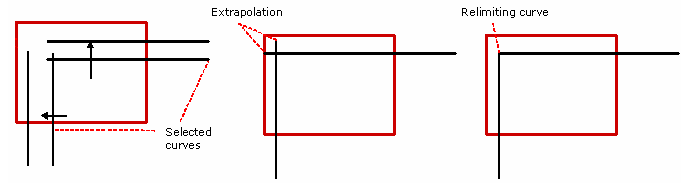

   Relimitation by extrapolation
