Creating Groups

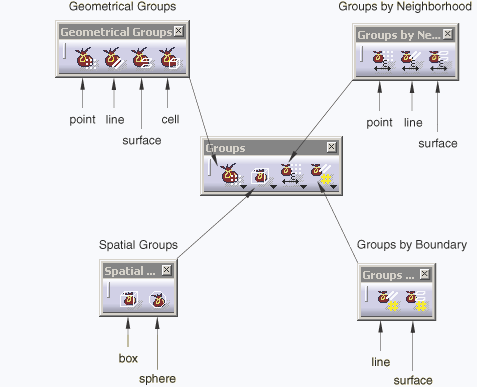

All of the CATIA V5 groups are supported by Abaqus for CATIA V5. You create groups by selecting geometry (cells, faces, edges, or vertices) from your model. Abaqus for CATIA V5 uses your selection to create a geometry group (such as a group of faces) or a group under a mesh part (such as a group of nodes). Figure 8–1 shows the tools that are available for creating groups.

Figure 8–1 Geometry groups.

Groups in Abaqus for CATIA V5 indicates when you can use a group as a support for an Abaqus for CATIA V5 feature, such as a boundary condition, a load, or a contact definition. Groups are described in more detail in Groups in the CATIA V5 Generative Structural Analysis User’s Guide.

The Geometrical Groups tools allow you to select individual vertices, edges, faces, or cells. For example, if you are creating a pressure load, you can select a group that contains surfaces, and the pressure is applied to those surfaces. Similarly, you can apply a point load to a group that contains points, and you can apply an initial temperature to a group that contains bodies.

The Spatial Groups tools allow you to select all of the entities inside a box or sphere. You can move the box or sphere around your model, and you can also resize it. Abaqus for CATIA V5 does not distinguish between box and sphere groups.

The Groups by Neighborhood tools allow you to select all of the vertices, edges, or faces within a specified distance of a selected vertex, edge, or face.

The Groups by Boundary tools allow you to select lines and edges that connect to form a closed polygon, and Abaqus for CATIA V5 selects all the nodes and elements inside the polygon. You can also select connected surfaces and faces that form a closed shape, and Abaqus for CATIA V5 selects all the nodes and elements inside the shape.

Groups are useful when you have a complex model that requires extensive view manipulations to select the desired entities. Groups are also useful when you are repeatedly selecting the same entities to support different operations. To simplify your selection, you can name a group and select the group from the specification tree, as shown in Figure 8–2.

Figure 8–2 Groups in the specification tree.

You create a group under the mesh part by right-clicking on the mesh part in the specification tree and selecting Create Group from the menu that appears. Figure 8–3 shows the tools that are available for creating mesh groups.

Figure 8–3 The tools for creating mesh groups.

In some cases, you can select only groups that are under a mesh part, for example, when you are selecting the component of a general analysis connection or a rigid coupling. When you update a mesh part, Abaqus for CATIA V5 does not update the groups under the mesh part. You must update each group by right-clicking the mesh groups in the specification tree and selecting Update Group from the menu that appears. See Creating Groups under Mesh Parts for more information. You must select a group under a mesh part when you are creating the following Abaqus for CATIA V5 entities (or selecting their handler points):

Groups by neighborhood are useful for creating groups under mesh parts where suitable geometry, from which you would otherwise create a geometrical group, does not exist. For example, you cannot create a face group from a mesh part that was extruded from a surface because there is no geometry extending beyond the original surface. However, you can select faces from the mesh part and create a face group under a mesh part.

Groups that you create with Abaqus for CATIA V5 become Abaqus node sets and/or element sets. You can right-click on a geometry group or a group under a mesh part in the specification tree and select Analyze Group to determine the number of nodes, elements, element faces, and element edges in the group. The name of the group is included in the Abaqus set name, which allows you to identify the set in the Abaqus input file that is generated by Abaqus for CATIA V5. All groups in the specification tree are written to the Abaqus input file, regardless of whether they are used by Abaqus for CATIA V5. You can access these groups in the input file usin, for example, a different preprocessor or a script.

Groups in Abaqus for CATIA V5 shows how Abaqus for CATIA V5 uses CATIA V5 groups to create node or element sets that can be analyzed by Abaqus.
