In the specifications tree, double-click the class to
which you want to add a property.
|
When you select a class its existing properties
show under the Inherited Attributes and Local Attributes areas.
Inherited attributes are those inherited from the super class to
which this class belongs. Local attributes are properties added to
the class itself. |
-
Click
Add Attribute
 .

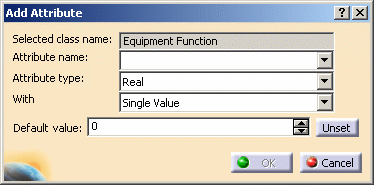

The Add Attribute dialog box opens:
-
Enter an attribute
name.
-
Click on the down arrow in
the Attribute type
box and select an attribute type.
-
Click on the down arrow in the
With box and select
Single Value
or Discrete
Values.
-
If you select Single Value, you can
change the value later by using Edit > Properties and
entering a new value.
-
If you choose Discrete Values, you
can only select a value from a predefined list. See
Defining Discrete Values for a Property
to find out how to create and save this list of values.
|
-
Enter a default value.
- Click
OK.
|
