You must be in the Sheet Metal Workbench, with a .CATPart
document open, and you must have defined the
sheet metal parameters.
Set the sketcher grid to H = 100mm and V = 100mm,
using the Tools > Options > Mechanical Design > Sketcher,
Sketcher tab, Grid area. |
|
 |
-
Click Sketch
then select the xy plane.
-
Click Profile
.
-
Sketch the profile as shown below:
-
Click Exit workbench
to return to the 3D world.
-
Click Wall
in the Walls toolbar.
|

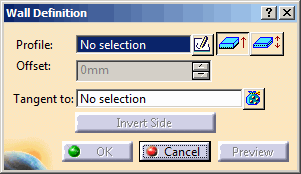

The Wall Definition dialog box opens. |
 |
 |
By default, the material
side is
set to the top. |
-
Select the desired profile
positioning option.
- Click

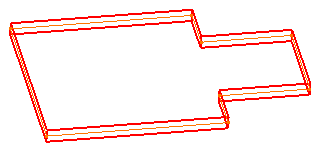

to set the sketch at middle position of the wall thickness

- Click
to

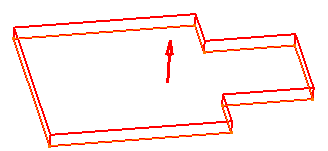

set the sketch at extreme position of the wall thickness

|
 |
The Invert Material Side
button is available only when the sketch is set at extreme
position. |
-
To offset the wall, type the desired
value in the Offset box.
By default, there is no offset and the value is set to 0mm.
The offset of the wall is previewed.
-
Click OK.
| The feature Wall.1 is added in the
specification tree. |
 |
 |
The first wall of the Generative Sheetmetal Design part is known
as the Reference wall. |
 |
|
 |
