This task shows how to replay validate the program by replaying the tool path and simulating material removal. | |
 |
1. | Right-click the program in the PPR tree and select Tool Path Replay. |

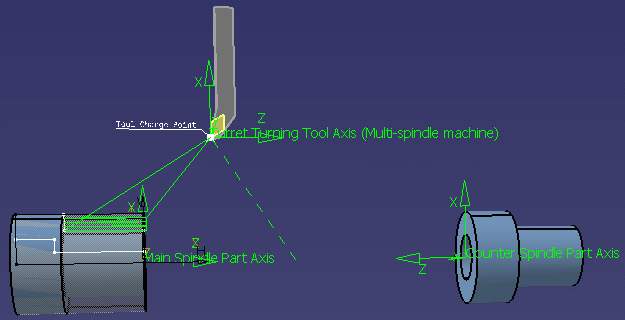

| 2. | Replay the External Roughing operation:
|
|

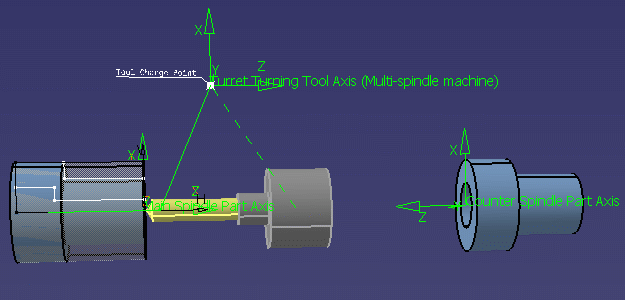

| 3. | Replay the first drilling operation:
|
|

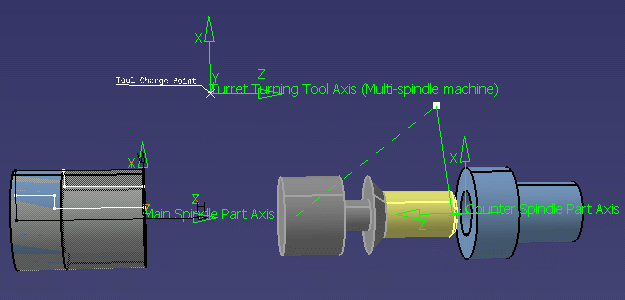

| 4. | Replay the second drilling operation:
|
|

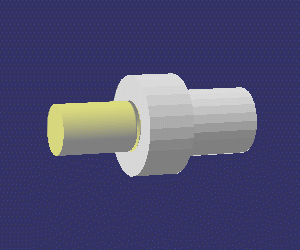

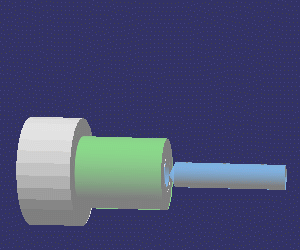

| 5. | Right-click the program in the PPR tree and select Start Video Simulation to simulate material removal. | |
 |
||
|
|
||
|
|
||
|
|
||
