This task shows how to add head changes in the program. | |
|
|
A machine with at least one head must be assigned to the Part
Operation. See Machine
Editor for more information. Either the program or a program entity must be current in the specification tree. |
|
|
|
1. |
Select Head Change
The corresponding dialog box is displayed.
|
| 2. |

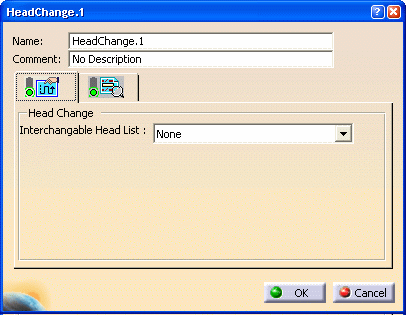

Select the Properties tab
The Interchangeable Head List proposes all the available heads on the machine that is assigned to the Part Operation. |
|
| 3. |

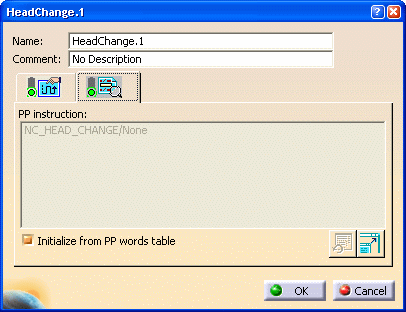

Select the Syntax tab
|
|
| 4. | Click OK to create the head change in the program. | |
|
|
||
