This section helps you to understand the tracing capability that is available for the client code of CATIA V5 / ENOVIA V5 VPM integration in a customer environment, thereby making the remote debugging possible.
How to activate tracing under Unix
-
Create .optionfile1 file on your local machine, containing the following line
ENOVIALCATraces -k. -
Set the CATTraDecDir variable to the path where the .optionfile1 file is present in the CATIA startup script. This step can be skipped if the location is the user's HOME directory.
-
Set the CNEXTOUTPUT variable giving the location for generating traces in the CATIA startup script (full path including file name).
Traces will be generated on the location specified with the CNEXTOUTPUT variable.
How to activate tracing under Windows
-
Create OPFILE.1
file on your local machine, containing the following line
ENOVIALCATraces -k. - Set that CATTraDecDir variable to the path where file OPFILE.1 is present in the CATIA startup bat file.
- Set the CNEXTOUTPUT variable giving the location for generating traces in the CATIA startup bat file (full path including file name).
Traces will be generated on the location specified with the CNEXTOUTPUT variable.
For more information, see ENOVIA VPLM V5 / ENOVIA V5 VPM > HOW GENERATE THE DEBUG TRACE FOR ONLY ONE USER WITH AN ENOVIA V5 SERVER ON WINDOWS in Knowledge Base.
Example 1: Traces for Open operation
-
Activate the traces as described in the "How to activate tracing" sections.
-

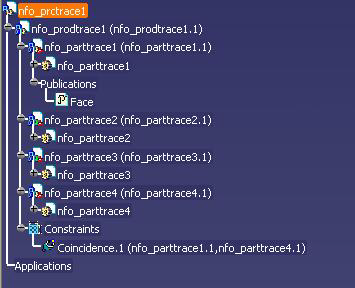

Have an Assembly saved in ENOVIA V5 VPM with following structure.
Parts nfo_parttrace2 and nfo_parttrace3 both have an external reference to nfo_prctrace1. The external reference in nfo_parttrace2 is based on the Face publication while the external reference in nfo_parttrace3 is not.
-
Open this Product in CATIA from ENOVIA V5 VPM.
-
Observe the traces generated at the location specified with the CNEXTOUTPUT variable.
Following is the sample trace that will be generated after an OK Open operation:
No.of entities sent from Enovia Selection : 3
Entity # 1 : Instance nfo_parttrace1.1 UUID=10832F9080000024D44524BEF50005979B
Entity # 2 : Instance nfo_prodtrace1.1 UUID=10832F9080000024D44524BEF40001AD3D
Entity # 3 : PRC nfo_prctrace1 UUID=10832F9080000024D44524BEF40000C906
Document created for ENOVIA Product : PRC nfo_prctrace1 UUID=10832F9080000024D44524BEF40000C906
Opened : PRC nfo_prctrace1 UUID=10832F9080000024D44524BEF40000C906
Added in TOS : nfo_prctrace1
Created ENOExtension for entity : ASMPRODUCT nfo_prctrace1
Opened : Reference nfo_prodtrace1 UUID=10832F9080000024D44524BEF3000D3AB8
Added in TOS : nfo_prodtrace1
Created ENOExtension for entity : ASMPRODUCT nfo_prodtrace1
Opened : Reference nfo_parttrace1 UUID=10832F9080000024D44524BEF10001AD6B
Extracted from vault : Document nfo_parttrace1 UUID=10832F9080000024D44524BEF10006D9FD
Vault Id : vault://VaultCXR17dev/832F90800000479945895AF30002ACCD
Added in TOS : nfo_parttrace1
Added in TOS : nfo_parttrace1 | Face
Opened : Instance nfo_parttrace1.1 UUID=10832F9080000024D44524BEF50005979B
Opened : Instance nfo_prodtrace1.1 UUID=10832F9080000024D44524BEF40001AD3D
Added in TOS : nfo_prodtrace1 | nfo_parttrace1.1
Created ENOExtension for entity : ASMPRODUCT nfo_parttrace1.1
Added in TOS : nfo_prctrace1 | nfo_prodtrace1.1
Created ENOExtension for entity : ASMPRODUCT nfo_prodtrace1.1
Added in TOS : nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace1.1
Created ENOExtension for entity : ASMPRODUCT nfo_parttrace1.1
0 Context(s) and 1 Publication(s) present on : Instance nfo_parttrace1.1 UUID=10832F9080000024D44524BEF50005979B
Retrieved Publication # 1 : StringProperty Face(CATIA Publication) UUID=10832F9080000024D44524BEF5000A933A
in
No.of entities sent from Enovia Selection : 3
Entity # 1 : Instance nfo_parttrace2.1 UUID=10832F9080000024D44524BEF50002BC5C
Entity # 2 : Instance nfo_prodtrace1.1 UUID=10832F9080000024D44524BEF40001AD3D
Entity # 3 : PRC nfo_prctrace1 UUID=10832F9080000024D44524BEF40000C906
Root Product Already in Session
Reference already opened : Reference nfo_prodtrace1 UUID=10832F9080000024D44524BEF3000D3AB8
Opened : Reference nfo_parttrace2 UUID=10832F9080000024D44524BEF20004D667
Extracted from vault : Document nfo_parttrace2 UUID=10832F9080000024D44524BEF200072BBA
Vault Id : vault://VaultCXR17dev/832F90800000479945895AF3000B0CF7
Added in TOS : nfo_parttrace2
Added in TOS : PRDCTXINPUT
Opened : Instance nfo_parttrace2.1 UUID=10832F9080000024D44524BEF50002BC5C
Added in TOS : nfo_prodtrace1 | nfo_parttrace2.1
Created ENOExtension for entity : ASMPRODUCT nfo_parttrace2.1
Instance already opened : Instance nfo_prodtrace1.1 UUID=10832F9080000024D44524BEF40001AD3D
Added in TOS : nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace2.1
Created ENOExtension for entity : ASMPRODUCT nfo_parttrace2.1
1 Context(s) and 0 Publication(s) present on : Instance nfo_parttrace2.1 UUID=10832F9080000024D44524BEF50002BC5C
Context 1 : Dependence Property of nfo_parttrace2 --- UUID=10832F9080000024D44524BEF5000B7A8B
Total Context(s) to be resolved at the end of Open : 1
No.of entities sent from Enovia Selection : 3
Entity # 1 : Instance nfo_parttrace3.1 UUID=10832F9080000024D44524BEF4000F1116
Entity # 2 : Instance nfo_prodtrace1.1 UUID=10832F9080000024D44524BEF40001AD3D
Entity # 3 : PRC nfo_prctrace1 UUID=10832F9080000024D44524BEF40000C906
Root Product Already in Session
Reference already opened : Reference nfo_prodtrace1 UUID=10832F9080000024D44524BEF3000D3AB8
Opened : Reference nfo_parttrace3 UUID=10832F9080000024D44524BEF2000C9CE4
Extracted from vault : Document nfo_parttrace3 UUID=10832F9080000024D44524BEF2000EE9F6
Vault Id : vault://VaultCXR17dev/832F90800000479945895AF400059B23
Added in TOS : nfo_parttrace3
Added in TOS : PRDCTXINPUT
Opened : Instance nfo_parttrace3.1 UUID=10832F9080000024D44524BEF4000F1116
Added in TOS : nfo_prodtrace1 | nfo_parttrace3.1
Created ENOExtension for entity : ASMPRODUCT nfo_parttrace3.1
Instance already opened : Instance nfo_prodtrace1.1 UUID=10832F9080000024D44524BEF40001AD3D
Added in TOS : nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace3.1
Created ENOExtension for entity : ASMPRODUCT nfo_parttrace3.1
1 Context(s) and 0 Publication(s) present on : Instance nfo_parttrace3.1 UUID=10832F9080000024D44524BEF4000F1116
Context 1 : Dependence Property of nfo_parttrace3 --- UUID=10832F9080000024D44524BEF5000CC91A
Total Context(s) to be resolved at the end of Open : 2
No.of entities sent from Enovia Selection : 3
Entity # 1 : Instance nfo_parttrace4.1 UUID=10832F9080000024D44524BEF4000BD94E
Entity # 2 : Instance nfo_prodtrace1.1 UUID=10832F9080000024D44524BEF40001AD3D
Entity # 3 : PRC nfo_prctrace1 UUID=10832F9080000024D44524BEF40000C906
Root Product Already in Session
Reference already opened : Reference nfo_prodtrace1 UUID=10832F9080000024D44524BEF3000D3AB8
Opened : Reference nfo_parttrace4 UUID=10832F9080000024D44524BEF30005399F
Extracted from vault : Document nfo_parttrace4 UUID=10832F9080000024D44524BEF30007F98D
Vault Id : vault://VaultCXR17dev/832F90800000479945895AF5000007AA
Added in TOS : nfo_parttrace4
Opened : Instance nfo_parttrace4.1 UUID=10832F9080000024D44524BEF4000BD94E
Added in TOS : nfo_prodtrace1 | nfo_parttrace4.1
Created ENOExtension for entity : ASMPRODUCT nfo_parttrace4.1
Instance already opened : Instance nfo_prodtrace1.1 UUID=10832F9080000024D44524BEF40001AD3D
Added in TOS : nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace4.1
Created ENOExtension for entity : ASMPRODUCT nfo_parttrace4.1
Execute : Action - FinalOpen
1 Connection(s) found for object # 1 : Reference nfo_prodtrace1 UUID=10832F9080000024D44524BEF3000D3AB8
Added in TOS : nfo_prodtrace1 | nfo_prodtrace1_geom | Coincidence.1(nfo_prodtrace1 | nfo_parttrace1.1 , nfo_prodtrace1 | nfo_parttrace4.1)
Created ENOExtension for entity : CONNECTION Coincidence.1
Created connection : CONNECTION Coincidence.1
UUID=10832F9080000024D44524BEF500086D76
No. of pointed objects =3
Reference nfo_prodtrace1 UUID=10832F9080000024D44524BEF3000D3AB8
InternalAR nfo_prodtrace1 --- | nfo_parttrace1.1 | nfo_parttrace1--- UUID=10832F9080000024D44524BEF500053D09
InternalAR nfo_prodtrace1 --- | nfo_parttrace4.1 | nfo_parttrace4--- UUID=10832F9080000024D44524BEF4000B7651
Resolve MMLs.
Resolved MML # 1 : Dependence Property of nfo_parttrace3 --- UUID=10832F9080000024D44524BEF5000CC91A
Objects involved in MML :
Instance nfo_parttrace3.1 UUID=10832F9080000024D44524BEF4000F1116
Instance nfo_parttrace1.1 UUID=10832F9080000024D44524BEF50005979B
Document nfo_parttrace1 UUID=10832F9080000024D44524BEF10006D9FD
Resolved MML # 2 : Dependence Property of nfo_parttrace2 --- UUID=10832F9080000024D44524BEF5000B7A8B
Objects involved in MML :
Instance nfo_parttrace2.1 UUID=10832F9080000024D44524BEF50002BC5C
Instance nfo_parttrace1.1 UUID=10832F9080000024D44524BEF50005979B
StringProperty Face(CATIA Publication) UUID=10832F9080000024D44524BEF5000A933A
No. of MMLs resolved : 2
Removing from TOS : nfo_prodtrace1
Removing from TOS : nfo_prodtrace1 | nfo_parttrace1.1
Removing from TOS : nfo_prodtrace1 | nfo_parttrace2.1
Removing from TOS : nfo_prodtrace1 | nfo_parttrace3.1
Removing from TOS : nfo_prodtrace1 | nfo_parttrace4.1
Removing from TOS : nfo_prodtrace1 | nfo_prodtrace1_geom | Coincidence.1(nfo_prodtrace1 | nfo_parttrace1.1 , nfo_prodtrace1 | nfo_parttrace4.1)
Removing from TOS : nfo_parttrace3
Removing from TOS : PRDCTXINPUT
Removing from TOS : nfo_parttrace1
Removing from TOS : nfo_parttrace1 | Face
Removing from TOS : nfo_parttrace4
Removing from TOS : nfo_parttrace2
Removing from TOS : PRDCTXINPUT
Removing from TOS : nfo_prctrace1
Removing from TOS : nfo_prctrace1 | nfo_prodtrace1.1
Removing from TOS : nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace1.1
Removing from TOS : nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace2.1
Removing from TOS : nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace3.1
Removing from TOS : nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace4.1
Example 2: Traces for Save operation
-
Activate the traces as described in the "How to activate tracing" sections.
-
Create an Assembly in CATIA with following structure:
Parts nfo_parttrace2 and nfo_parttrace3 both have an external reference to nfo_prctrace1. The external reference in nfo_parttrace2 is based on the Face publication while the external reference in nfo_parttrace3 is not.
Following is the sample trace that will be generated:
****** The log of D:\Nitin\work\Highlight\Traces in Customer Environment\SampleData\nfo_prctrace1.CATProduct contains the following list of 11 records
[1] entity ASMPRODUCT nfo_prctrace1 is CATPDMLogStatusNew
[2] entity ASMPRODUCT nfo_prctrace1 | nfo_prodtrace1.1 is CATPDMLogStatusNew
[3] entity ASMPRODUCT nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace4.1 is CATPDMLogStatusNew
[4] entity ASMPRODUCT nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace3.1 is CATPDMLogStatusNew
[5] entity ASMPRODUCT nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace2.1 is CATPDMLogStatusNew
[6] entity ASMPRODUCT nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace1.1 is CATPDMLogStatusNew
[7] entity CONNECTOR nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace1.1 | CONNECTOR.1 is CATPDMLogStatusNew
[8] entity PUBLISHING nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace1.1 | Face.1 is CATPDMLogStatusNew
[9] entity CONNECTOR nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace1.1 | CONNECTOR.2 is CATPDMLogStatusNew
[10] entity CONNECTOR nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace1.1 | CONNECTOR.3 is CATPDMLogStatusNew
[11] entity CONNECTOR nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace4.1 | CONNECTOR.1 is CATPDMLogStatusNew
****** The log of D:\Nitin\work\Highlight\Traces in Customer Environment\SampleData\nfo_prodtrace1 ---.CATProduct contains the following list of 10 records
[1] entity ASMPRODUCT nfo_prodtrace1 is CATPDMLogStatusNew
[2] entity ASMPRODUCT nfo_prodtrace1 | nfo_parttrace4.1 is CATPDMLogStatusNew
[3] entity ASMPRODUCT nfo_prodtrace1 | nfo_parttrace3.1 is CATPDMLogStatusNew
[4] entity ASMPRODUCT nfo_prodtrace1 | nfo_parttrace2.1 is CATPDMLogStatusNew
[5] entity ASMPRODUCT nfo_prodtrace1 | nfo_parttrace1.1 is CATPDMLogStatusNew
[6] entity CONNECTOR nfo_prodtrace1 | nfo_parttrace1.1 | CONNECTOR.1 is CATPDMLogStatusNew
[7] entity PUBLISHING nfo_prodtrace1 | nfo_parttrace1.1 | Face.1 is CATPDMLogStatusNew
[8] entity CONNECTOR nfo_prodtrace1 | nfo_parttrace1.1 | CONNECTOR.2 is CATPDMLogStatusNew
[9] entity CONNECTOR nfo_prodtrace1 | nfo_parttrace4.1 | CONNECTOR.1 is CATPDMLogStatusNew
[10] entity CONNECTION nfo_prodtrace1 | nfo_prodtrace1_geom | Coincidence.1(nfo_prodtrace1 | nfo_parttrace1.1 , nfo_prodtrace1 | nfo_parttrace4.1) is CATPDMLogStatusNew
****** The log of D:\Nitin\work\Highlight\Traces in Customer Environment\SampleData\nfo_parttrace4 ---.CATPart contains the following list of 1 records
[1] entity ASMPRODUCT nfo_parttrace4 is CATPDMLogStatusNew
****** The log of D:\Nitin\work\Highlight\Traces in Customer Environment\SampleData\nfo_parttrace3 ---.CATPart contains the following list of 2 records
[1] entity ASMPRODUCT nfo_parttrace3 is CATPDMLogStatusNew
[2] entity PRDCTXINPUT PRDCTXINPUT is CATPDMLogStatusNew
****** The log of D:\Nitin\work\Highlight\Traces in Customer Environment\SampleData\nfo_parttrace2 ---.CATPart contains the following list of 2 records
[1] entity ASMPRODUCT nfo_parttrace2 is CATPDMLogStatusNew
[2] entity PRDCTXINPUT PRDCTXINPUT is CATPDMLogStatusNew
****** The log of D:\Nitin\work\Highlight\Traces in Customer Environment\SampleData\nfo_parttrace1 ---.CATPart contains the following list of 3 records
[1] entity ASMPRODUCT nfo_parttrace1 is CATPDMLogStatusNew
[2] entity CONNECTOR nfo_parttrace1 | CONNECTOR.1 is CATPDMLogStatusNew
[3] entity PUBLISHING nfo_parttrace1 | Face is CATPDMLogStatusNew
ENOVIA transaction suspend successful
Save started for : ASMPRODUCT nfo_parttrace1
Save started for : DOC D:\Nitin\work\Highlight\Traces in Customer Environment\SampleData\nfo_parttrace1 ---.CATPart
Save started for : ASMPRODUCT nfo_parttrace2
Save started for : DOC D:\Nitin\work\Highlight\Traces in Customer Environment\SampleData\nfo_parttrace2 ---.CATPart
Save started for : ASMPRODUCT nfo_parttrace3
Save started for : DOC D:\Nitin\work\Highlight\Traces in Customer Environment\SampleData\nfo_parttrace3 ---.CATPart
Save started for : ASMPRODUCT nfo_parttrace4
Save started for : DOC D:\Nitin\work\Highlight\Traces in Customer Environment\SampleData\nfo_parttrace4 ---.CATPart
Save started for : ASMPRODUCT nfo_prodtrace1
Save started for : ASMPRODUCT nfo_prctrace1
Save started for : ASMPRODUCT nfo_prctrace1 | nfo_prodtrace1.1
Save started for : ASMPRODUCT nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace4.1
Save started for : ASMPRODUCT nfo_prodtrace1 | nfo_parttrace4.1
Save started for : ASMPRODUCT nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace3.1
Save started for : ASMPRODUCT nfo_prodtrace1 | nfo_parttrace3.1
Save started for : ASMPRODUCT nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace2.1
Save started for : ASMPRODUCT nfo_prodtrace1 | nfo_parttrace2.1
Save started for : ASMPRODUCT nfo_prctrace1 | nfo_prodtrace1.1 | nfo_parttrace1.1
Save started for : ASMPRODUCT nfo_prodtrace1 | nfo_parttrace1.1
Save started for : DOC D:\Nitin\work\Highlight\Traces in Customer Environment\SampleData\nfo_prodtrace1 ---.CATProduct
Save started for : DOC D:\Nitin\work\Highlight\Traces in Customer Environment\SampleData\nfo_prctrace1.CATProduct
Created : Reference nfo_parttrace1 UUID=10832F90800000346045A22780000C0F08
Added in TOS : nfo_parttrace1
Created ENOExtension for entity : ASMPRODUCT nfo_parttrace1
Associate Document nfo_parttrace1 ---[39] with Reference nfo_parttrace1 UUID=10832F90800000346045A22780000C0F08
Result Document : Document nfo_parttrace1 ---[39] UUID=10832F90800000346045A2278100063A0F
Expose : Reference nfo_parttrace1 UUID=10832F90800000346045A22780000C0F08
Doc exposer Document nfo_parttrace1 ---[39] UUID=10832F90800000346045A2278100063A0F
Exposition UUID=25A3308F00001DBC4524BF680001CCA7
Created : Reference nfo_parttrace2 UUID=10832F90800000346045A227820003A63F
Added in TOS : nfo_parttrace2
Created ENOExtension for entity : ASMPRODUCT nfo_parttrace2
Associate Document nfo_parttrace2 ---[39] with Reference nfo_parttrace2 UUID=10832F90800000346045A227820003A63F
Result Document : Document nfo_parttrace2 ---[39] UUID=10832F90800000346045A22782000680A0
Expose : Reference nfo_parttrace2 UUID=10832F90800000346045A227820003A63F
Doc exposer Document nfo_parttrace2 ---[39] UUID=10832F90800000346045A22782000680A0
Exposition UUID=25A3308F00001DBC4524BF7D0001CCDC
Created : Reference nfo_parttrace3 UUID=10832F90800000346045A2278300000599
Added in TOS : nfo_parttrace3
Created ENOExtension for entity : ASMPRODUCT nfo_parttrace3
Associate Document nfo_parttrace3 ---[39] with Reference nfo_parttrace3 UUID=10832F90800000346045A2278300000599
Result Document : Document nfo_parttrace3 ---[39] UUID=10832F90800000346045A227830002C715
Expose : Reference nfo_parttrace3 UUID=10832F90800000346045A2278300000599
Doc exposer Document nfo_parttrace3 ---[39] UUID=10832F90800000346045A227830002C715
Exposition UUID=25A3308F00001DBC4524BF840001CD11
Created : Reference nfo_parttrace4 UUID=10832F90800000346045A22783000BD0D9
Added in TOS : nfo_parttrace4
Created ENOExtension for entity : ASMPRODUCT nfo_parttrace4
Associate Document nfo_parttrace4 ---[39] with Reference nfo_parttrace4 UUID=10832F90800000346045A22783000BD0D9
Result Document : Document nfo_parttrace4 ---[39] UUID=10832F90800000346045A22783000E8F57
Expose : Reference nfo_parttrace4 UUID=10832F90800000346045A22783000BD0D9
Doc exposer Document nfo_parttrace4 ---[39] UUID=10832F90800000346045A22783000E8F57
Exposition UUID=25A3308F00001DBC4524BF8C0001CD46
Created : Reference nfo_prodtrace1 UUID=10832F90800000346045A22784000B48F3
Added in TOS : nfo_prodtrace1
Created ENOExtension for entity : ASMPRODUCT nfo_prodtrace1
Associate Document nfo_prodtrace1 ---[39] with Reference nfo_prodtrace1 UUID=10832F90800000346045A22784000B48F3
Result Document : Document nfo_prodtrace1 ---[39] UUID=10832F90800000346045A22784000DF6D9
Expose : Reference nfo_prodtrace1 UUID=10832F90800000346045A22784000B48F3
Doc exposer Document nfo_prodtrace1 ---[39] UUID=10832F90800000346045A22784000DF6D9
Exposition UUID=25A3308F00001DBC4524BF4F0001CC7C
Created : Reference nfo_prctrace1 UUID=10832F90800000346045A227850007DBFF
Added in TOS : nfo_prctrace1
Created ENOExtension for entity : ASMPRODUCT nfo_prctrace1
Associate Document nfo_prctrace1[39] with Reference nfo_prctrace1 UUID=10832F90800000346045A227850007DBFF
Result Document : Document nfo_prctrace1[39] UUID=10832F90800000346045A22785000A8238
Expose : Reference nfo_prctrace1 UUID=10832F90800000346045A227850007DBFF
Doc exposer Document nfo_prctrace1[39] UUID=10832F90800000346045A22785000A8238
Exposition UUID=25A3308F00001DBC4524BF260001CC67
Publication saved : StringProperty Face(CATIA Publication) UUID=10832F90800000346045A2278600005C83
Added in TOS : nfo_parttrace1 | Face
Stream to vault : DOC ENOVIA5\nfo_parttrace1 ---[39].CATPart
Stream - document is : Dirty, Saved
Associated Data for : Document nfo_parttrace1 ---[39] UUID=10832F90800000346045A2278100063A0F
Streamed successfully.
Stream to vault : DOC ENOVIA5\nfo_parttrace2 ---[39].CATPart
Stream - document is : Dirty, Saved
Associated Data for : Document nfo_parttrace2 ---[39] UUID=10832F90800000346045A22782000680A0
Streamed successfully.
Stream to vault : DOC ENOVIA5\nfo_parttrace3 ---[39].CATPart
Stream - document is : Dirty, Saved
Associated Data for : Document nfo_parttrace3 ---[39] UUID=10832F90800000346045A227830002C715
Streamed successfully.
Stream to vault : DOC ENOVIA5\nfo_parttrace4 ---[39].CATPart
Stream - document is : Dirty, Saved
Associated Data for : Document nfo_parttrace4 ---[39] UUID=10832F90800000346045A22783000E8F57
Streamed successfully.
Stream to vault : DOC ENOVIA5\nfo_prodtrace1 ---[39].CATProduct
Stream - document is : Dirty, Saved
Associated Data for : Document nfo_prodtrace1 ---[39] UUID=10832F90800000346045A22784000DF6D9
Streamed successfully.
Stream to vault : DOC ENOVIA5\nfo_prctrace1[39].CATProduct
Stream - document is : Dirty, Saved
Associated Data for : Document nfo_prctrace1[39] UUID=10832F90800000346045A22785000A8238
Streamed successfully.
ENOVIA transaction commit successful
