Filtering Annotations

This task shows you how to filter the display of annotations. These filtering options lets you focus on your area of investigation.

  1. Click Filter in the Visualization toolbar.

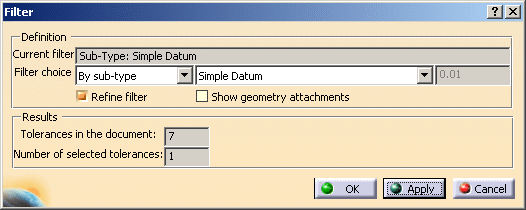

    The Filter dialog box is displayed.

  2. Set the Filter choice field to "By sub-type".

  3. Set the Simple Datum sub-type.
Checking the Refine filter option filters out tolerances still filtered.


  1. Click Apply.
    The Number of selected tolerances field displays "1".

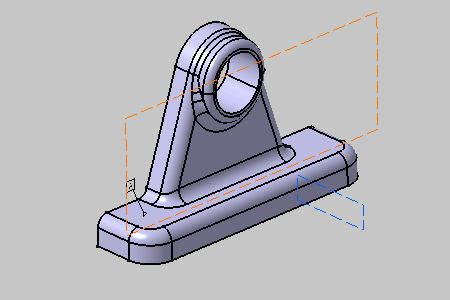

The only datum you created in this tutorial is consequently displayed attached to the geometry.

  1. Click Cancel to cancel the operation and perform the rest of the scenario.

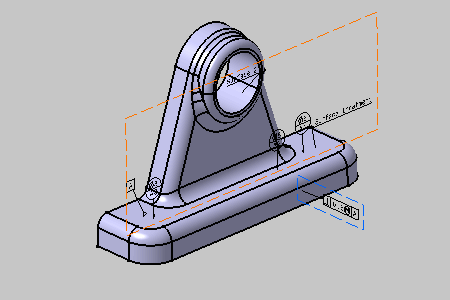

    All annotations are visible again.
