Entering the 3D Functional Tolerancing and Annotation Workbench

This task shows you how to enter the workbench and open the document you need for performing this tutorial.

  1. Select the Start > Mechanical Design > Functional Tolerancing and Annotation command to launch the workbench.
    The 3D Functional Tolerancing and Annotation workbench is opened.
    The commands are available in the toolbar to the right of the application window.

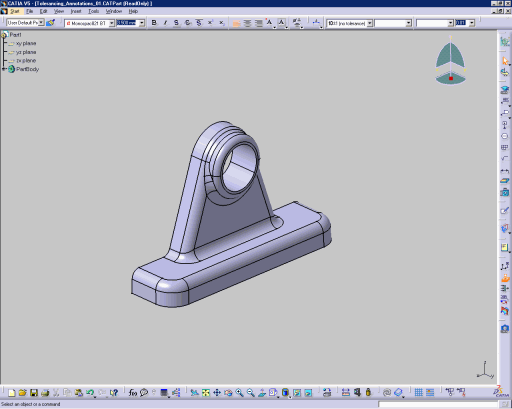

  2. Open the Tolerancing_Annotations_01 CATPart document. This is what you get:
To know how to use the commands available in the Standard and View toolbars located in the application window border, please refer to Infrastructure User's Guide Version 5.
