Adding an Interruption Leader

This task shows you how to add an interruption leader.
Open the Annotations_Part_04.CATPart document:

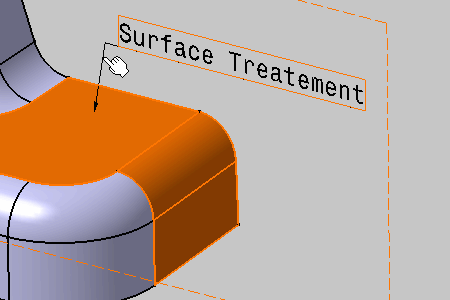

  1. Click the annotation text.

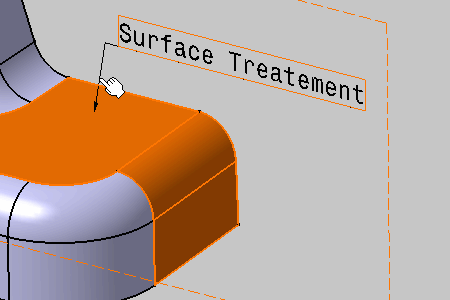

  2. Right-click the end manipulator and select Add an Interruption from the contextual menu.

  3. Indicate the start point of the interruption on the leader.

  4. Indicate the end point of the interruption on the leader.

    The interruption is created.
To remove the interruption, right-click the end manipulator and select Remove Interruptions from the contextual menu.
