Creating User-defined Connection Properties

This task shows you how to create user-defined distant connection properties.
  • Only available with the Generative Assembly Structural Analysis (GAS) product but some advanced options are only available with the Elfini Structural Analysis (EST) product.
  • To have precisions and to know restrictions, refer to About Connection Properties.


Creating user-defined distant connection properties allows you to specify the types of elements as well as their associated properties included inside a distant connection.
For example:

You define which types of element are featured in the connection. Remember that you can possibly have the following types of connected elements:

  • Surface-Point part (left part). It describes the way the surface is connected to the middle of the connection. The possible combinations are:
    • Smooth
    • Rigid
    • Spring-Smooth
    • Spring-Rigid
    • Contact-Rigid
  • Middle part. It describes the elements featuring in the middle of the connection. The possible combinations are:
    • Rigid
    • Spring-Rigid-Spring
    • Rigid-Spring-Rigid
    • Spring-Rigid
    • Rigid-Spring
    • Beam
    • Spring-Beam-Spring
    • Beam-Spring-Beam
    • Spring-Beam
    • Beam-Spring
    • Bolt-Rigid
    • Rigid-Bolt
    • Bolt-Beam
    • Beam-Bolt
    • Bolt-Rigid-Spring
    • Spring-Rigid-Bolt
  • Point-Surface part. It describes the way the surface is connected to the middle of the connection. The possible combinations are:
    • Smooth
    • Rigid
    • Smooth-Spring
    • Rigid-Spring
    • Rigid-Contact

Open sample12.CATAnalysis from the samples directory.

  1. Click User-defined Distant Connection Property in the Connection Properties toolbar.

    The User-defined Connection Property dialog box appears.

    Depending on the type of Start, Middle and End elements you choose, you have to define the corresponding parameters using the Component Edition button .

    For example: if you select the Rigid, Spring-Beam and Rigid-Contact combination, you will have to define the properties of each of the following elements: Spring, Beam and Contact.

  2. Select an analysis connection as support.

    In this particular example, select the General Analysis Connection.1 in the specification tree under the Analysis Connection Manager.1 set.

    A symbol representing the user-defined connection property is visualized on the corresponding faces.

  3. Select the type of the elements to be featured at the start, the middle, and the end of the connection.

  4. When needed, click the Component Edition button to define the element parameters for the start, the middle, and the end of the connection.

    The corresponding dialog box appears. The order of the parameters displayed in the dialog box depends on the element type you selected.
    For example, options for Spring-Beam and Beam-Spring are displayed differently. For Spring-Beam, spring parameters are displayed first, and beam parameters are displayed after the spring parameters. For Beam-Spring, beam parameters are displayed first, and spring parameters are displayed after the beam parameters.

    This is an example:

    If you set the parameters as shown below:

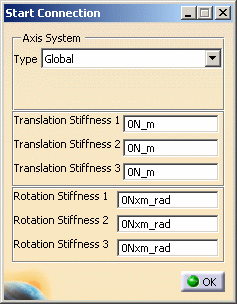

    • Start: if you click the Component Edition button , the Start Connection dialog box appears:

      • Axis System Type: lets you to choose between Global or User axis systems for defining the degrees of freedom directions.

        • Global: if you select the global axis system, the degree of freedom directions will be interpreted as relative to the fixed global rectangular coordinate system.

        • User:  if you select a user axis system, the degree of freedom directions will be relative to the specified Axis system. Their interpretation will further depend on your Axis System Type choice.

          To select a User Axis system, you must activate an existing Axis by clicking it in the features tree. Its name will then be automatically displayed in the Current Axis field.

          If you select the User Axis system, the Local orientation combo box further allows you to choose between Cartesian, Cylindrical and Spherical Local Axis Orientations.

      • Translation and Rotation stiffness values.

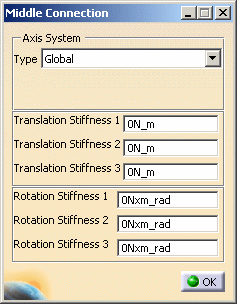

    • Middle: if you click the Component Edition button , the Middle Connection dialog box appears:

    • End: if you click the Component Edition button , the End Connection dialog box appears:

  5. Click OK in the Start, Middle or End Connection dialog box.

  6. Click OK in the User-defined Connection Property dialog box.

    Note that two elements appear in the specification tree:

    • A Generic Connection Mesh.1 connection mesh part under the Nodes and Elements set
    • A User-defined Connection Property.1 connection property under the Properties.1 set.
  • If the support of the connection is a Face to Point connection (connecting wire-frames with solid or surface), only two of the three lists will be proposed (left part and middle part).
  • If the support of the connection is a Point to Point connection (connecting two wire-frames), only the middle list will be proposed.
  • No handler point is proposed in that type of connection. To ensure that a Face to Face connection will respect a given point, it will be necessary to split into a Face to Point and a Point to Face connection sharing the same point. Like for virtual parts sharing the same handler point, only one single node will be generated on the associated point.
