Information about the current project can be
viewed and edited by selecting

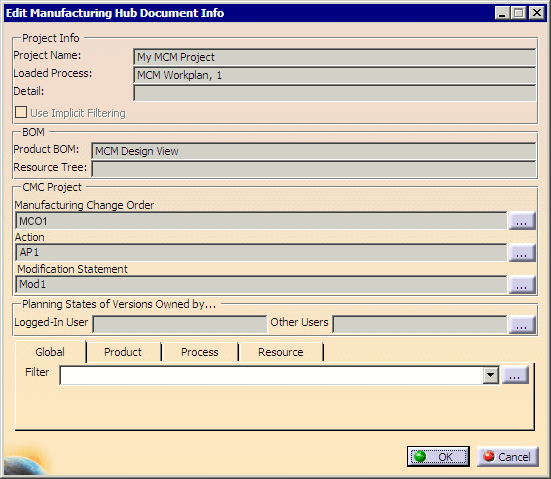

Tools> Manufacturing Hub Commands> Edit Manufacturing Hub Document's Information. This command displays a dialog that provides project, BOM and filtering information about the current project,
as shown in the image below:

The Edit Manufacturing Hub Document Info dialog provides a means of editing the
existing filter information to specify new filters. After modifying the configuration filters and clicking on the
OK button, the current V5 document will synchronize with the Manufacturing Hub database and automatically be
updated to reflect the new filters. Objects that match the new filters will be added to the document if they did
not previously exist, and objects that do not match the new filters will be deleted from the document.
When saving a document with edited filters, the user is prompted to save
the detailing with a new name to avoid overwriting the existing detailing stored in the Manufacturing Hub.
Notes
-
Use Implicit
Filtering indicates whether the Apply Implicit Filtering
option was enabled at the time that the current project was loaded
from the Manufacturing Hub. This control is used only to display the
implicit filtering status for the loaded project and can not be
changed from the Edit Manufacturing Hub Document Info
dialog box.
Use Implicit Filtering is checked if Apply Implicit
Filtering was enabled when the project was loaded in V5. If
Apply Implicit Filtering was not applied, Use
Implicit Filtering is not checked.
-
If
you click OK in Edit
Manufacturing Hub Document Information
without modifying any filter information,
then a reload option dialog (You have not changed any
filters.
Do you still want to continue
with reload of the document)
appears. If you have
to reload then click Yes,
this is equivalent to closing the document
and re-opening the same object, If you click
‘No’ then command exits
without reloading the document. Main purpose of this dialog is to
prevent unnecessary re-load of the
document, which can have performance impact.
|
