This section provides detailed information about the exact measurement computation.

Measure between command permits exact measure on geometrical entities. The measure computation is based on the geometrical modeler which specifies a tolerance value for creating geometrical objects. This tolerance value must be taken into account when performing exact measurements as it impacts greatly the measure results.

• Understanding the Tolerance Value

• Impact of the Tolerance Value on Measure Between Computation in Exact Mode

• Impact of the Tolerance Value on Measure Item Computation in Exact Mode

• The Relative Tolerance for Measure Item & Measure Inertia in Exact Mode (Surfaces & Volumes)

Understanding the Tolerance Value

The tolerance value is the threshold value under which two geometrical points coincide. In other words, this is
the lowest admissible length under which a geometrical object can be created.

This tolerance value specifies the minimum length for a valid object. It is set to 10^-3 unit. As the unit is expressed in mm, lines with length shorter than 1micro-m are not valid.
For example, curves or edges whose length is below the tolerance value are not created.

The tolerance value specified by the geometric modeler leads to manage carefully:

• coincidence issues (i.e. when the distance value between two geometrical points is below the tolerance value, the two points coincide.

• impacts on Boolean operators (e.g. edges with a length value below the tolerance value cannot be created).

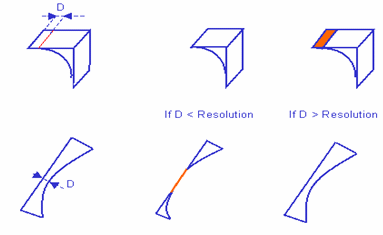

  The figure below show the impact of the tolerance value at creation time:

  On the top row, if D > tolerance value, a new face is created.

  On the bottom row, if D < tolerance value the face is separated into two distinct faces.




Impact of the Tolerance Value on Measure Between Computation in Exact Mode

It is not possible to guarantee the validity of measure results when those are below the tolerance value specified by the geometrical modeler (0.001mm).

Impact of the Tolerance Value on Measure Item Computation in Exact Mode

Surfaces, Arcs, curves and lines are created with respect to the tolerance value specified by the geometrical modeler.

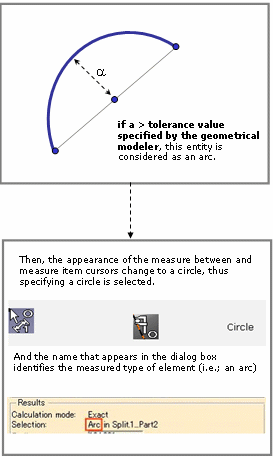

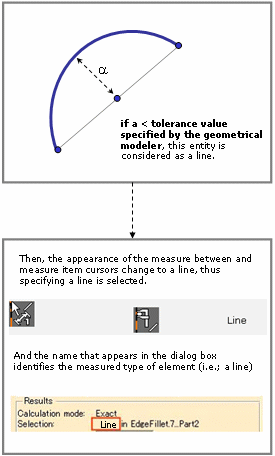

The Measure Item capability may detect that the geometry corresponds to an arc when the curvature radius is changing inside the limits of the tolerance value specified by the geometrical modeler.

 The Relative Tolerance for Measure Item & Measure Inertia in Exact Mode (Surfaces & Volumes)

The relative tolerance of 1% is used in the measure computation when you measure surfaces and volumes in exact mode.

In the Knowledge Base Variation in the measure results for the same object measured at different instances.
