Considering the iXF Schema
in Greater Depth

The iXF electrical schema is split in four parts (four files):

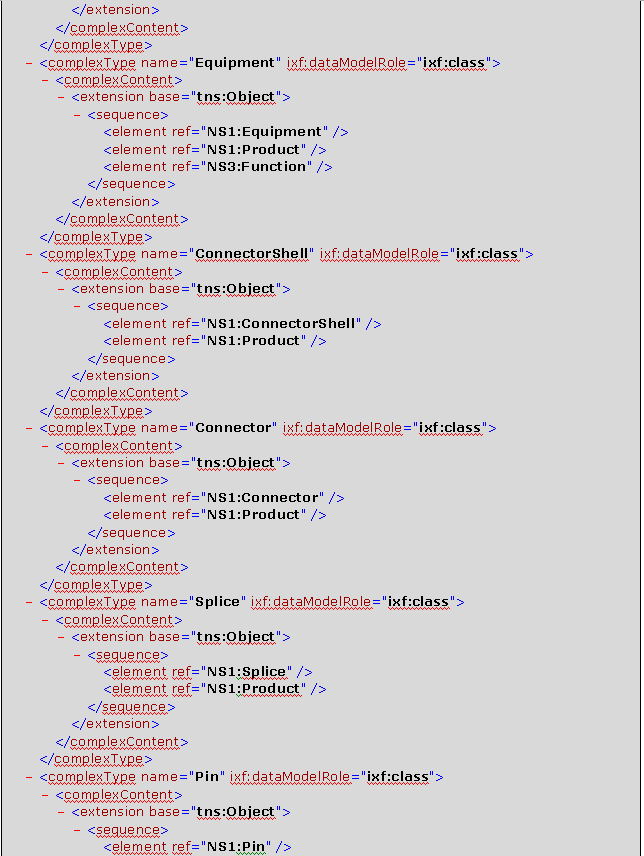

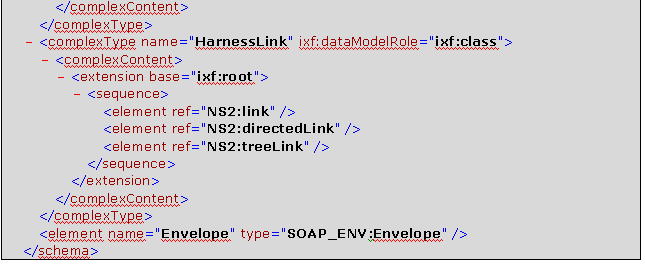

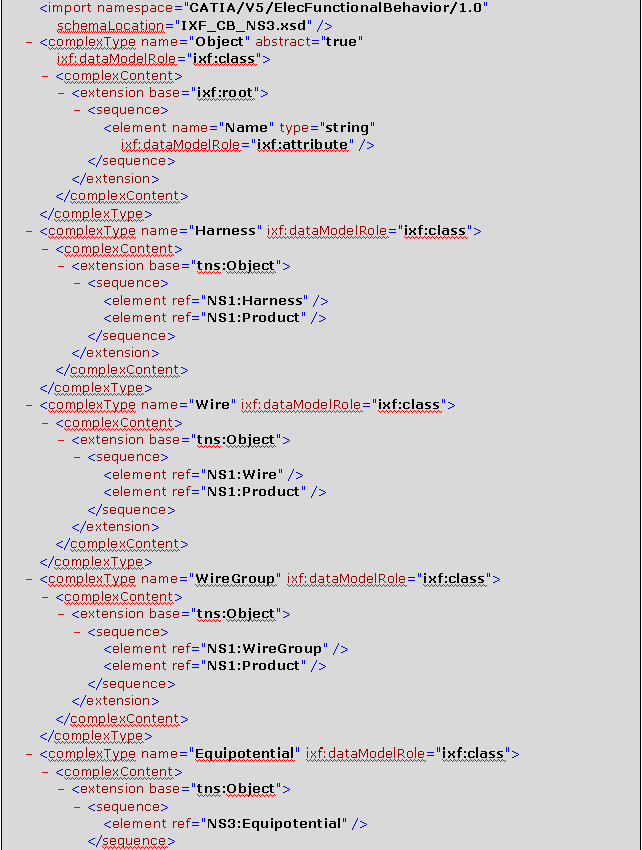

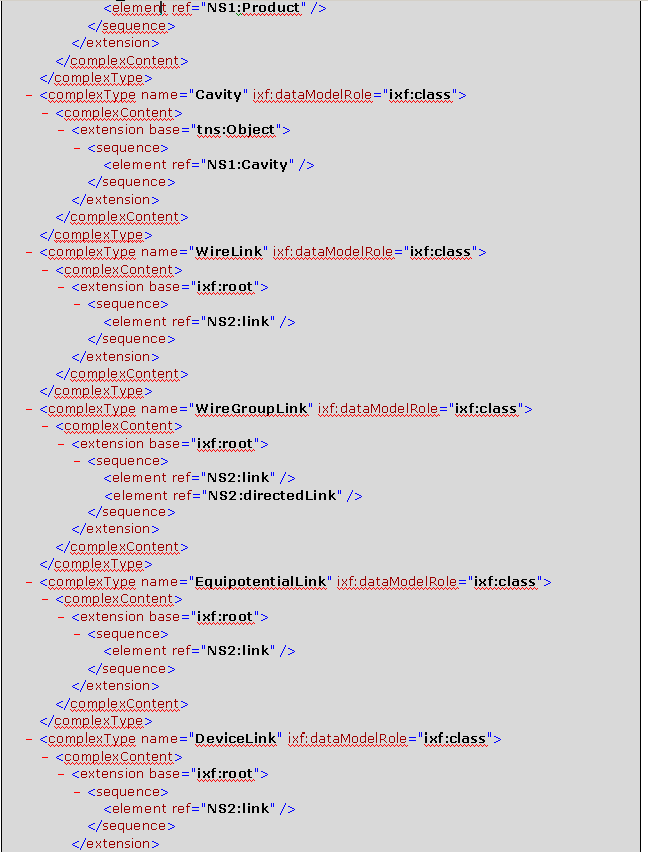

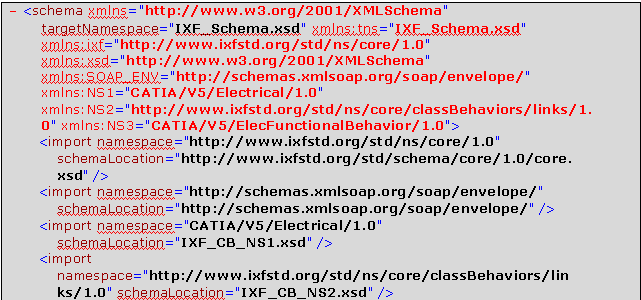

1. ElectricalSchema.xsd: refers to the other three and describes the Electrical Object Classes.

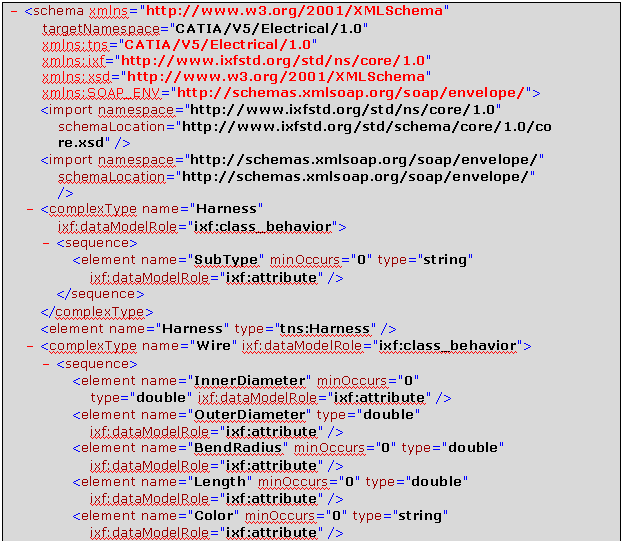

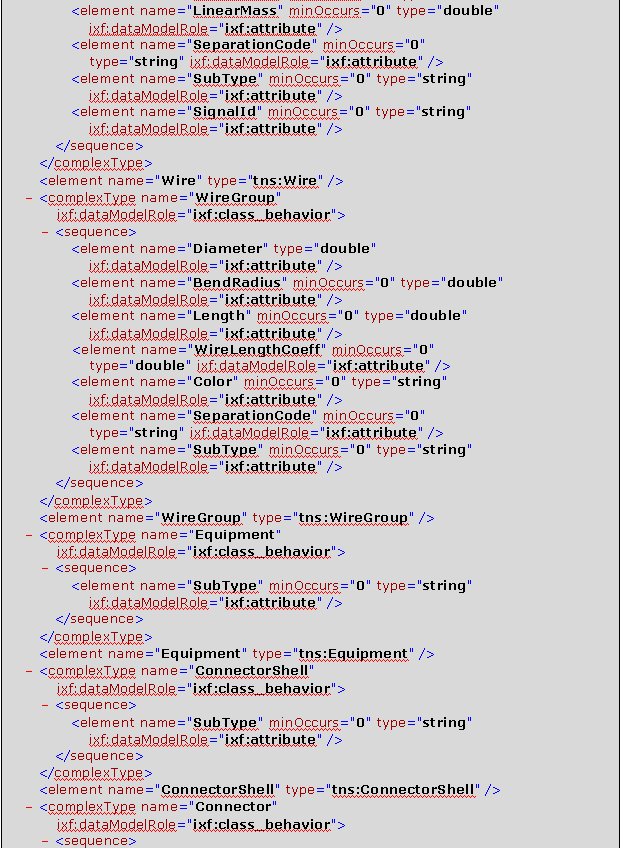

2. IXF_CB_NS1.xsd: describes strictly the Electrical Behaviors.

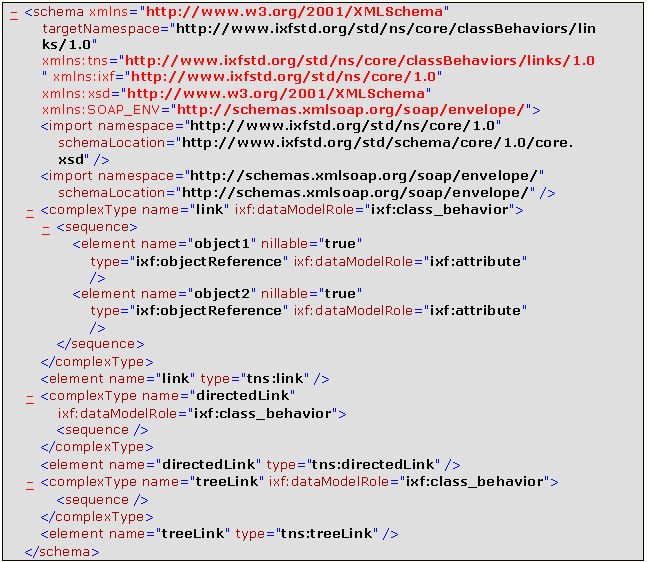

3. IXF_CB_NS2.xsd: describes the Link type Behaviors (iXF standard reference).

4. IXF_CB_NS3.xsd: describes the Functional Behaviors.

The identifiers are case sensitive. You must use the identifiers as specified, or else the functionality might not work.

Electrical Object Classes

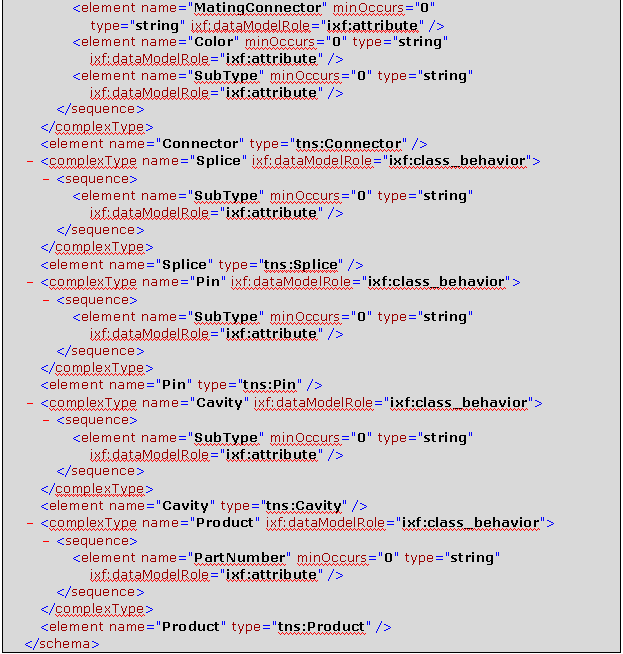

Electrical Behaviors

Link Type Behaviors

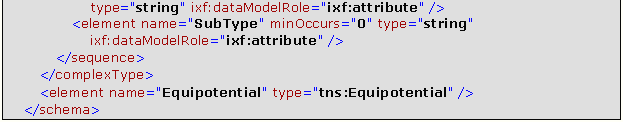

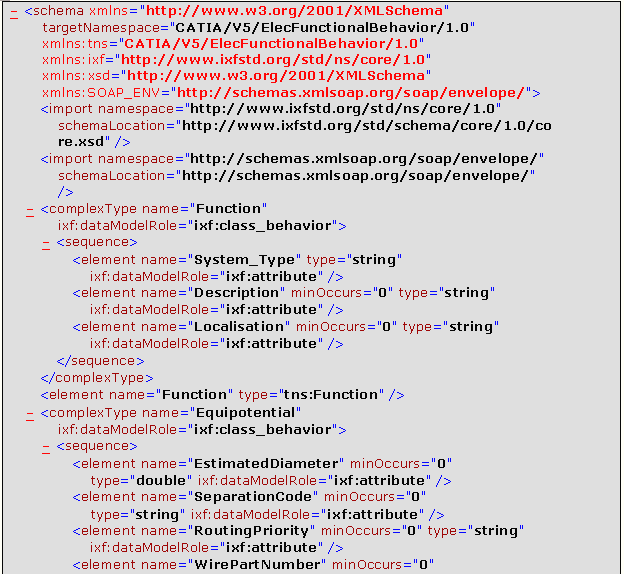

Functional Behaviors
