This task shows you two ways to translate a component: |
|
|
 |
 |
If you are working in Assembly Design workbench, this task is P1-only. |
|
 |
Using P2 configuration, you can rotate constrained components by means
of the Shift key and the compass. |
 |
The element to be translated must belong to the active component. |
|
The option Automatic switch to Design mode is available for
this command. For more about this option, refer to Access to geometry in
the Infrastructure User's Guide. |
|
Open an assembly. |
 |
-
Click the Translate or Rotation icon:
|
|

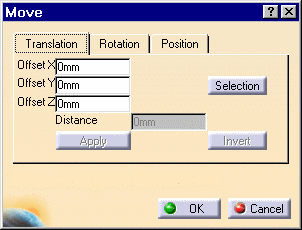

The Move dialog box is displayed.
Either you specify an offset value between the element and x, y or z
axis, or you select a geometric element to define the direction you need. |
|
 |
|
-
Select the component to be translated.
|
|
 |
|
By Entering Values
|
|
-
Enter 50 mm as the offset value, in the
Offset X field. The component are translated along x axis.
|
|
-
Click Apply.
|
|
The selected component is translated accordingly. |
|
 |
|
-
Click the Invert button to reverse the
previous operation and translate the component in the opposite direction.
|
|
The component is translated in the opposite
direction. You can click Apply as many times as you wish to
translate the component to the desired position. |
|
 |
|
-
Click OK to close the dialog box.
|
|
-
Repeat steps 1 and 2.
|
|
By Selecting Geometric Elements
|
|
-
Click the Selection button to define a new
translation with respect to a geometric element.
|
|
The Translation tab contents is grayed out. If
you select a line or a plane you need to enter a distance value. The
translation is then done along the selected line or normal to the selected
plane. Selecting two faces or planes assumes these elements are parallel. |
|
-
Select two faces. These faces are
parallel.
|
|
 |
|
The application computes the distance between
these faces.
The Offset field then displays this distance value: |
|
Offset X: 20mm |
|
Offset Y: 0mm |
|
Offset Z: 0mm |
|
-
Click Apply to translate the blue component.
|
|
 |
|
You can apply this translation to any other
components. You just need to select it and click the Apply
button. |
|
-
Click OK to exit.
|
