General



This page deal with options concerning:

Chaining Edges Design Change
  By default, Use chaining edges geometrical reroute is not selected.

Colors

Sets the default colors of Die Face Design. Click a color patch to select another color.

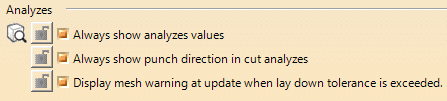

Analyses

Select or clear a check box to display or hide corresponding information.
Preventing the display of information improves performances.
By default, all check boxes are selected.



Process Behavior

Enter the value used to extrapolate cutting lines. This value initializes a parameter with the same name. When modified, all the cutting lines of type "outer cut tools" are extrapolated on both sides.
There is no check to see whether the extrapolation intersects the part to stamp.
  By default, the value is set to 0 mm.


Global

Select this check box to display more guidance in

  • Create Press Direction
  • Create Cam Direction
  • Process Method Plan
  • Process Step.
  By default, the check box is not selected.
