Color
Use the Shape and/or Plate color chooser to define the default color for shapes and plates respectively.

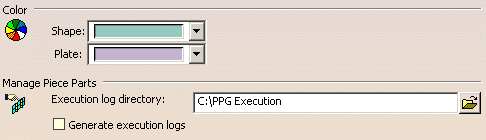

By default, colors are as shown above.
Manage Piece Parts
Execution log directory
Specify the location where the execution log directory is stored.
By default, the PPG execution logs are saved in the <CATTemp folder>\PPGExec\<Source
part> directory. You can specify a different
parent folder by clicking Browse icon.
Generate execution logs
Select the check box to generate the execution log at the specified location. This log is used to manage the piece parts when some changes are done in the source data and features. The execution log naming convention is: <Source part>_<yyyymmdd>_<hhmmss>.txt.
By default, this check box is cleared.
