Penetration



The Penetration Management Functions using the following catalogs:


  • Penetration Openings Catalog (Openings.catalog)

  • Penetration Shapes Catalog (PenShapes.catalog)

  • Penetration Cutout Rules (PenetrationCutoutRules.CATProduct)

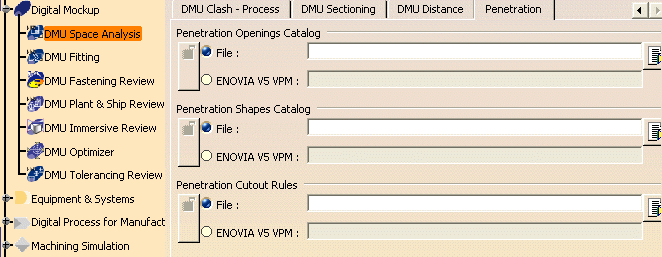

The three categories of options has a following sub-options in common :


  • File: Lets you to enter the path giving the default location in which the catalogs are stored.

  • ENOVIA V5 VPM:   Lets you specify the path in VPM giving the default location in which the catalogs are stored.
