Export Default Directory
This option lets you specify the default directory used to store the sets of quality criteria that you export using the Export Criteria option in the Quality Analysis command of the Advanced Meshing Tools workbench (for more details, refer to Advanced Meshing Tools User's Guide - User Tasks - Quality Analysis - Analyzing Element Quality).
By default, a temporary folder is indicated as export default directory.
Default Standard File
This option lets you specify the set of quality criteria that you want to use by default to analyze the mesh quality.
By default, the Surface_Mesh_Quality_Criteria set of criteria is
used in the quality analysis.

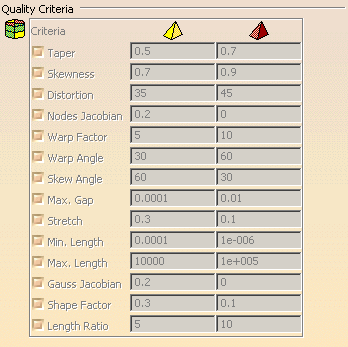

Quality Criteria
This frame lets you visualize the quality criteria that are taken into account and their limit values between:
-
good and poor elements -
poor and bad elements
By default, all the Quality Criteria are taken into account.
The limit values change as you define the Default Standard File option.
