Manipulators




This page deals with the following categories of options in the Manipulators tab:



Manipulators


  These settings can be used for any type of manipulator (texts, leaders, center lines, dimensions and so forth).

Reference size

Specify the reference size that should be used for manipulators. In the case of texts, for example, this reference size corresponds to the size of the annotation manipulators.





By default, the reference size is set to 2mm.

Zoomable

Check this box if you want to make manipulators zoomable.

By default, this option is selected.



Rotation




Rotation Snap Angle

Specify the angle that should be used when rotating text elements (text, frame, or leader) using snapping. In other words, this option defines the snapping value used when rotating an element using the Select or Rotate commands.

By default, rotation snap angle is set to 15 deg.

Automatic Snapping

Select this option to use snapping automatically when rotating an element.

By default, this option is not selected.



Orientation




Snap on privileged directions

Select this option to use snapping automatically when orienting a leader or an arrow segment on the following privileged directions:

  • Horizontal
  • Vertical
  • Reference normal
  • Reference tangent

By default, this option is selected.

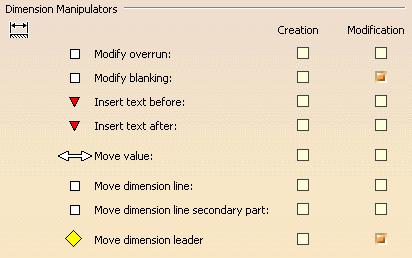

Dimension Manipulators


  These options let you define which manipulators you will visualize and therefore use when creating and/or modifying dimensions:


Modify overrun

If you drag select one overrun manipulator, both overrun extension lines are modified. To modify only the selected overrun extension line, use the Ctrl key. You can also double-click on the manipulator and enter the new value in the dialog box that appears.

By default, the Creation and Modification options are not selected.

Modify blanking

If you drag select one blanking manipulator, both blanking are modified. To modify only the selected blanking, use the Ctrl key. You can also double-click on the manipulator and enter the new value in the dialog box that appears.

By default, the Creation option is not selected, and the Modification option is selected.

Insert text before

Allow inserting a text before, without using the Properties dialog box. For this, you will click on the manipulator and enter the new text in the dialog box that appears.

By default, the Creation and Modification options are not selected.

Insert text after

Allows inserting a text after, without using the Properties dialog box. For this, you will click on the manipulator and enter the new text in the dialog box that appears.

By default, the Creation and Modification options are not selected.

Move value

Lets you move only the dimension value.

By default, the Creation and Modification options are not selected.

Move dimension line

Lets you move only the dimension line by dragging it to the new location.

By default, the Creation and Modification options are not selected.

Move dimension line secondary part

Lets you move only the dimension line secondary part by dragging it to the new location.

By default, the Creation and Modification options are not selected.

Move dimension leader

Lets you move the dimension leader first part.

By default, the Creation option is not selected, and the Modification option is selected.

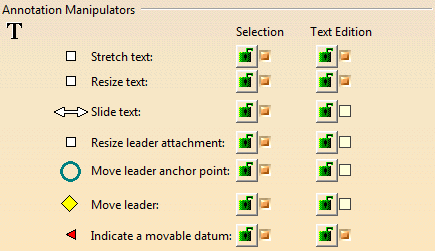

Annotation Manipulators

These options allow you to customize whether to display the manipulators on annotations or not:
  • When you select the annotation
  • When you edit the annotation's text

Stretch text

Lets you display the stretch text annotation manipulator.

By default, the Selection and Text Edition options are selected.

Resize text

Lets you display the resize text annotation manipulator, using which you can resize the text as per your requirement.

By default, the Selection and Text Edition options are selected.

Slide text

Lets you display the slide text annotation manipulator, using which you can move the text along either sides as per your requirement.

By default, the Selection option is selected and the Text Edition option is not selected.

Resize leader attachment

Lets you display the resize leader attachment annotation manipulator, using which you can resize the offset between the anchor point and the first point of the leader.

By default, the Selection option is selected and the Text Edition option is not selected.

Move leader anchor point

Lets you display the move leader anchor point annotation manipulator, using which you can move the leader anchor point as per your requirement.

By default, the Selection option is selected and the Text Edition option is not selected.

Move leader

Lets you display the move leader annotation manipulator, using which you can move the leader at any desired location.

By default, the Selection option is selected and the Text Edition option is not selected.

Indicate a movable datum

Lets you display the indication of a movable annotation handle, using which you can switch between a   movable datum target and a non-movable datum target.

By default, the Selection and the Text Edition options are selected.
