This page deals with the Fastener Attributes option
for DPM - Fastening Process Planner.
Features in Manufacturing Hub |
 |
|
This
has the option to choose whether the position of features should be
loaded to V5 with respect to the world coordinate frame or relative to
the part. This can be set using the following. Position is used for visualization of feature in 3D viewer. In V5 position information is displayed in Properties dialog box. |
 |
Maximum offset to edit manufacturing position |
|
|
When users edit manufacturing locations, they can set
constraints on how far the manufacturing locations can be set from their
design location.
|
|
|
Manufacturing Position Management |
|
|
| When selected, the option creates a unique fastener
in the following manner: the first time the position of a fastener
is modified within a process, a new manufacturing fastener is created
and associated with the process. The second (or any subsequent)
modification of the position in the same process updates the new
manufacturing fastener. If this manufacturing fastener is assigned to a new process
and the user modifies the position and saves it to the manufacturing hub, a new
manufacturing fastener is created that differs from the previous one. When unchecked, any change in the position in V5 to the fastener is propagated to all processes to which fastener is assigned. A unique manufacturing fastener is maintained.
|
|
|

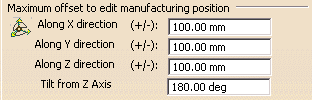

By default, the constraints are set to 100.00 mm along the X, Y and Z
directions, and to allow a 180.00 degree tilt from the Z axis.
